testo 175 H1 - Temperature and humidity data logger
Price RM1,256.00 RM1,576.25
Product SKU 0572 1754
Brand Testo
Size (L x W x H) 26.5 cm x 12 cm x 6.5 cm
Availability In Stock
Shipping Fee
Quantity
Description
Highlight
  • Shorter reaction times and accurate measurements with external humidity sensor
  • Round-the-clock monitoring and logging of temperature, relative humidity and dew point
  • Super-size memory for long-term measurements and up to 1 million readings, battery life 3 years
  • Free software download (ComSoft Basic)

Description

Product Description

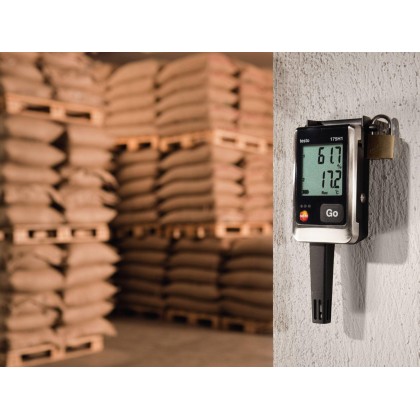

The testo 175 H1 data logger measures, monitors and logs the temperature and relative humidity in buildings and closed rooms. The logger comes with an external humidity sensor (stub) for shorter reaction times and a lock to prevent it from being easily stolen or tampered with.
In addition to the current temperature and humidity values, the logger can also log and display dew point values.  Other information including adjustable threshold values, breached thresholds and remaining battery power can also be read off the large, clear display.


Security and comfort on all levels

The testo 175 H1 ensures a high level of data security and reliable measurements based on leading-edge technology. The logger has a super-size memory that can save up to 1 million readings and an extended battery life of up to 3 years. This gives you the freedom to read out the data at longer intervals, even when the measuring cycles are shorter. The triple AAA batteries included in the scope of supply can be easily replaced by the user.


Programming and Analyzing Your Data Loggers

Choose 1 of 3 software versions to program or read out your loggers or to analyze the measuring data you have obtained on your PC:

  • Software ComSoft Basic – included – allows you to program your logger and analyze the data quickly and easily

  • Software ComSoft Professional – optional – provides you with additional possibilities and a more detailed analysis of the temperature and humidity values

  • Software ComSoft CFR 21 Part 11 – optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11

PLEASE NOTE: You will need a USB cable (not included in scope of supply) to program your data logger. The data can be transferred to your PC either via USB cable or SD card. Both are optionally available as accessories which can be ordered together with your testo 175 H1.

Areas of application for the testo 175 H1 data logger

The testo 175 H1 professional data logger is ideal for round-the–clock monitoring of temperature and humidity values in closed rooms. The 175 H1 can monitor the indoor climate in buildings, storage facilities and archives and help create a comfortable climate in the workplace. The logger’s external humidity sensor (stub) is connected directly to the housing for shorter reaction times.


Delivery Scope

testo 175 H1 2-channel data logger for temperature and humidity, with external sensor (NTC/capacitive humidity sensor), including wall bracket, lock, batteries and calibration protocol.



Specification

Temperature - NTC

Measuring range

-20 to +55 °C

Accuracy

±0.4 °C (-20 to +55 °C) ±1 Digit

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %RH*

Accuracy

±2 %RH (2 to 98 ) at +25 °C

Resolution

0.1 %RH

* Not for condensing atmospheres.

Dewpoint (calculated)

Measuring range

-40 to +50 °Ctd

Accuracy

+0.03 %RH/K ±1 Digit

General technical data

Weight

130 g

Dimensions

149 x 53 x 27 mm

Operating temperature

-20 to +55 °C

Product-/housing material

Plastic

Protection class

IP54

Channels

2 internal

Product colour

Black

Life-time sensor

Long-term drift of the sensor <1% RH / year (ambient temperature + 25 ° C)

Standards

EU-guideline 2014/30/EU; 2011/65/EU

Measuring rate

10 s - 24 h

Battery type

3 x AIMn type AAA or Energizer

Battery life

3 years at 15 min. meas. rate, +25 °C

Interface

mini usb, SD card slot

Memory

1,000,000 measuring values

Storage temperature

-20 to +55 °C



Download

Product Brochure




  ​  Data sheet testo 175 H1 (PDF, 2.0MB)



    Software


   ComSoft Basic (for data logger testo 174, 175, 176, 177)   (v5 ServicePack 6.2, EXE, 171.693 KB)

                If you already have an older version of the ComSoft Basic 5 installed on your computer, please uninstall this first.

Reviews (0)
view all
back
0
0 reviews
What's in the box

testo 175 H1 2-channel data logger for temperature and humidity, with external sensor (NTC/capacitive humidity sensor), including wall bracket, lock, batteries and calibration protocol.
