RM3,998.00 RM5,251.00

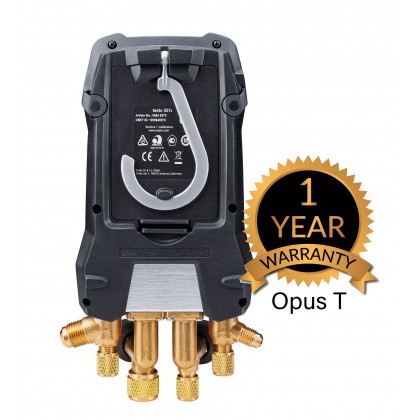

testo 557s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless vacuum and clamp temperature probes and hose filling set with 4 hoses
Price RM3,998.00 RM5,251.00
Product SKU 0564 5572
Brand Testo
Size (L x W x H) 50 cm x 37 cm x 16 cm
Availability In Stock
Shipping Fee
Quantity
Description
Highlight
  • Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display

  • Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class

  • Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more

  • In the kit: testo 557s smart digital manifold with Bluetooth and 4-way valve block, 1 x testo 552i wireless vacuum probe (Bluetooth), 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), hose filling set with 4 hoses, case

Description

Product Description



For completely wireless measurements on refrigeration and air conditioning systems and heat pumps. Thanks to the Bluetooth vacuum probe supplied, you can even measure vacuum without any cables or hoses. You will get the testo 557s smart digital manifold with Bluetooth and 4-way valve block, one testo 552i wireless vacuum probe (Bluetooth), two testo 115i wireless clamp thermometers (Bluetooth, NTC), a hose filling set with 4 hoses and a robust transport case. For other wireless measurements, the Testo Smart Probes are ideal.



Delivery Scope

  • testo 557s digital 4-way manifold including batteries (4 x AA) and calibration protocol
  • 1 x testo 552i wireless Bluetooth vacuum probe
  • 2 x testo 115i wireless Bluetooth clamp thermometers
  • Hose filling set with 4 hoses
  • Transport case
  • testo Smart App (free download)
  • Instruction manuals





Specification

Temperature

Measuring range

-50 to +150 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Probe connection

2 x Plug-in (NTC)

Pressure measurement

Measuring range

-1 to 60 bar

Accuracy

±0.5 % fs

Resolution

0.01 bar

Probe connection

3 x 7/16" – UNF + 1 x 5/8'' – UNF

Overload rel. (high pressure)

65 bar

General technical data

Weight

1243 g

Dimensions

229 x 112.5 x 71 mm (LxWxH)

Operating temperature

-20 to +50 °C

Protection class

IP54

Product colour

Black

Auto-off

10 min*

Battery type

4 x type AA batteries

Battery life

250 h with no illumination, no Bluetooth®h (without illumination, without Bluetooth®, without vacuum probe); 100 h with illumination and Bluetooth®

Radio range

150 m

Pressure media

CFC

Refrigerants in instrument

R1234yf; R744 (CO₂); R437A; R503; R452A; R500; R114; R444B; R407H; R422B; R434A; R410A; R290; R449A; R401B; R407F; R13; R123; R718 (H₂O); R404A; R125; R416A; R421B; R422C; R448A; R22; R407A; R409A; R12; R454B; R414B; R442A; R1233zd; R420A; R424A; R458A; R427A; R450A; R124; R502; R1234ze; R600a; R23; R402B; R455A; R454A; R407C; R453a; R513A; R401A; R422D; R402A; R507; R454C; R408A; R421A; R134a; R32; R452B; R438A

System requirements

requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0

Refrigerants update via App

R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22

Storage temperature

-20 to +60 °C

* when not connected via Bluetooth



Absolute Pressure

Measuring range

0 to 26.66 mbar /

0 to 20000 micron

Accuracy

±10 micron + 10 % of mv (100 to 1000 micron)

±(1

Resolution

1 micron (0 to 1000 micron) /

10 micron (1000 to 2000 micron) /

100 micron (2000 to 5000 micron) /

Overload

absolute: 6.0 bar / 87 psi

(relative: 5.0 bar / 72 psi)

General technical data

Weight

142 g

Dimensions

150 x 32 x 31 mm (LxWxH)

Operating temperature

-10 to +50 °C

Protection class

IP54

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Auto-off

10 min*

Battery type

3 AAA micro batteries

Battery life

39 h

Connection

7/16“ UNF

Interface

Bluetooth® 4.2

Storage temperature

-20 to +50 °C

* when not connected via Bluetooth



Temperature - NTC

Measuring range

-40 to +150 °C

Accuracy

±1.3 °C (-20 to +85 °C)

Resolution

0.1 °C

General technical data

Weight

127.4 g

Dimensions

183 x 90 x 30 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

150 h

Data transfer

Bluetooth®

Radio range

100 m

Storage temperature

-20 to +60 °C





Applications

Refrigeration systems, air conditioning systems, heat pumps

  • Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
  • Tightness test: Recording and analysis of the pressure curve
  • Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
  • Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
  • Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)



Download

Product Brochure



  ​  Data sheet testo 557s   (application/pdf, 1.821 KB)



  ​  Data sheet testo 552i  (application/pdf, 994 KB)



  ​  Data sheet testo 115i  (application/pdf, 286 KB)



​    testo Smart Probes FAQ  (application/pdf, 1.113 KB)







Manuals



  ​  Instruction manual testo 550s / testo 557s  (application/pdf, 2.925 KB)

Reviews (0)
view all
back
0
0 reviews
What's in the box

testo 557s digital 4-way manifold including batteries (4 x AA) and calibration protocol ; 1 x testo 552i wireless Bluetooth vacuum probe ; 2 x testo 115i wireless Bluetooth clamp thermometers ; Hose filling set with 4 hoses ; Transport case ; testo Smart App (free download) ; Instruction manuals
